FloodLine Series Pro
Portable, reusable water-filled flood protection for homes, garages, shopfronts and smaller commercial openings.
Practical Flood Protection Without Permanent Fixtures

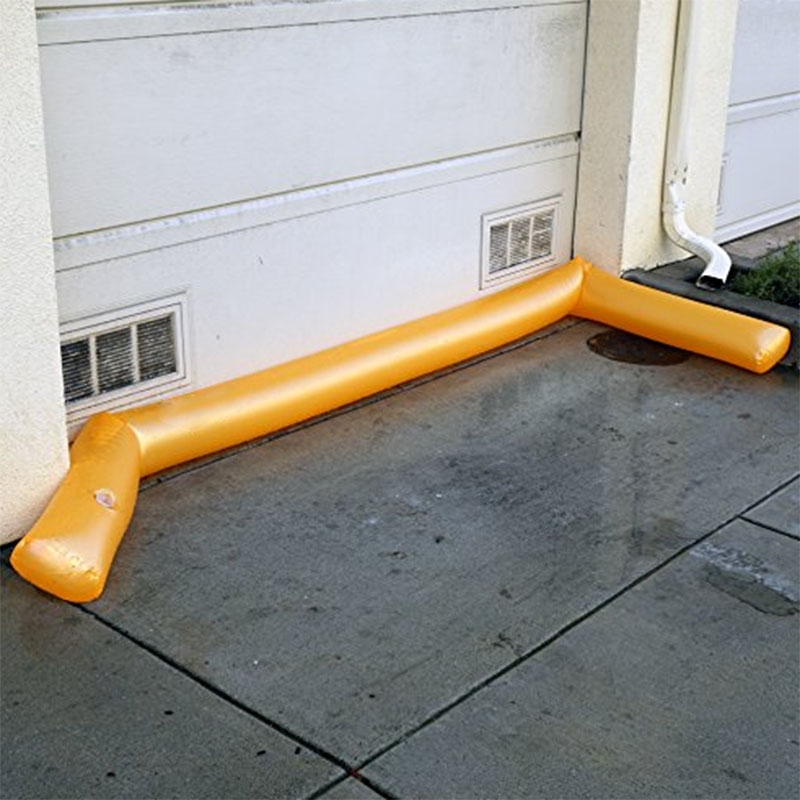

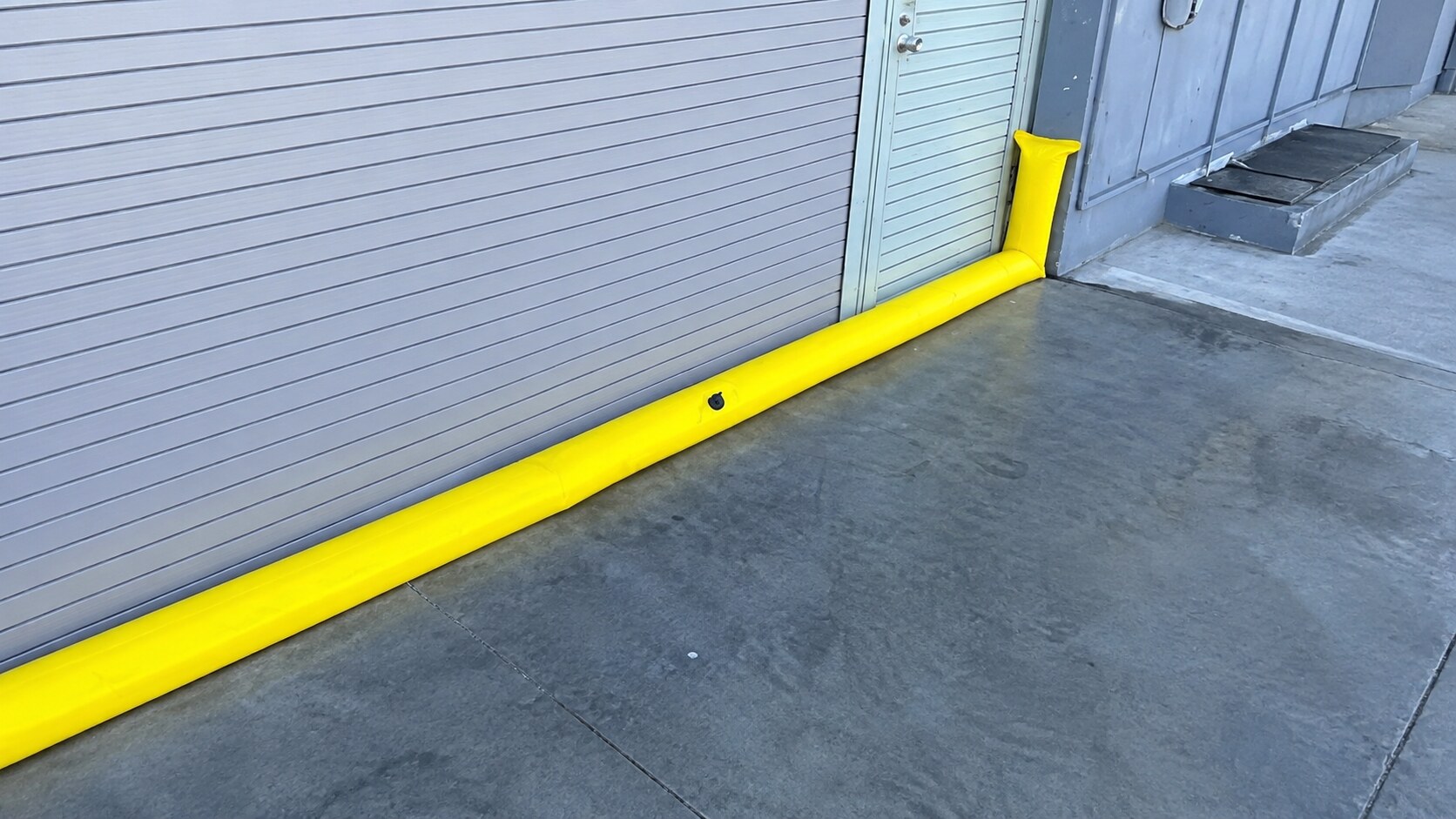

FloodLine Series Pro is a portable inflatable flood barrier designed for fast deployment where floodwater may enter through doorways, garages, shopfronts, driveways and other short openings. The barrier is lightweight when empty, then filled with water on site so the weight of the contained water helps hold it in position.
Once the flood risk has passed, the barrier can be drained, cleaned, dried and stored for reuse. This provides a practical alternative to repeatedly preparing and disposing of traditional sandbags.
How It Works
The empty barrier is laid across the intended protection line and filled with water. As the tube fills, it develops the weight and shape required for deployment against shallow surface flooding and localised runoff. Correct placement, surface preparation and matching the barrier to the expected flood conditions are important to performance.
Construction
The Series Pro uses a 0.6 mm PVC construction. The yellow barrier is designed to remain compact for storage and handling when empty, while becoming substantially heavier and more stable once filled.
Series Pro Sizes
Explore three supplier-listed tube profiles, approximately 102 mm, 152 mm and 305 mm high, with eight length and profile combinations in the size guide. Contact Special Solutions Flood Protection to confirm the right size, current availability and lead time for your site.
Series Pro size guide
Choose one size below. All measurements are in millimetres: length × width × overall tube height.
Dimensions are approximate length × width × tube height, converted from the supplier’s imperial sizes and rounded to the nearest millimetre. Tube height is not a rated flood-protection depth. Suitability and the recommended water depth must be confirmed for the selected size, surface, layout and flood conditions before ordering.
Not sure which size? Ask us for guidance.
A closer look at Series Pro

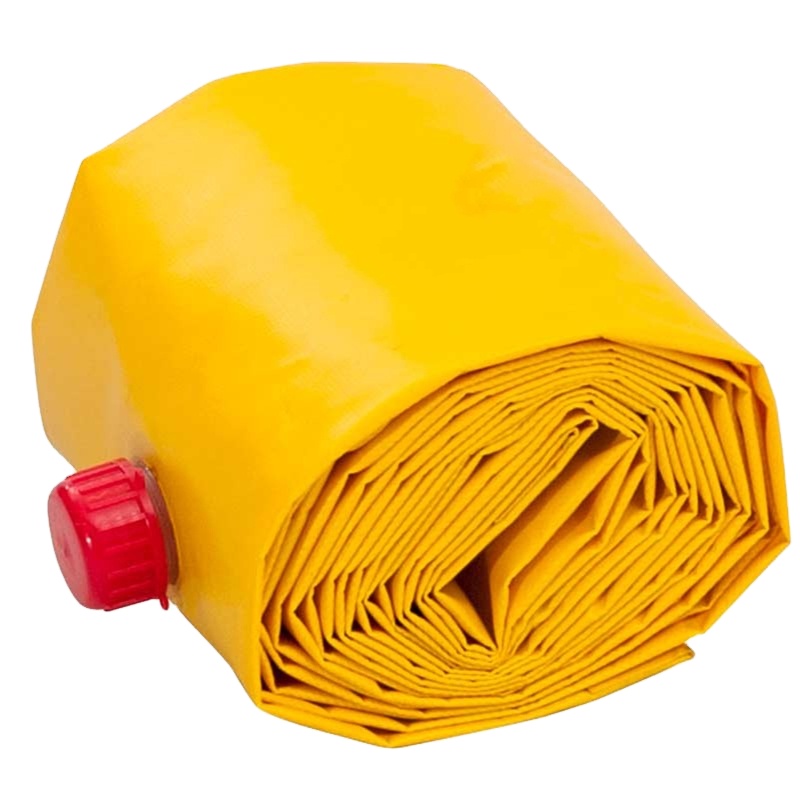

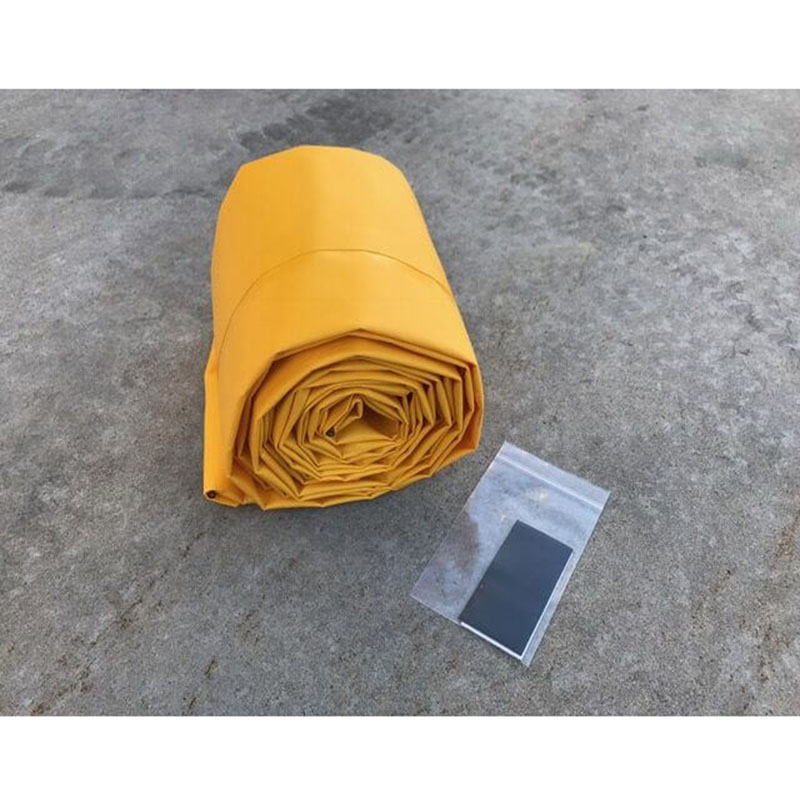

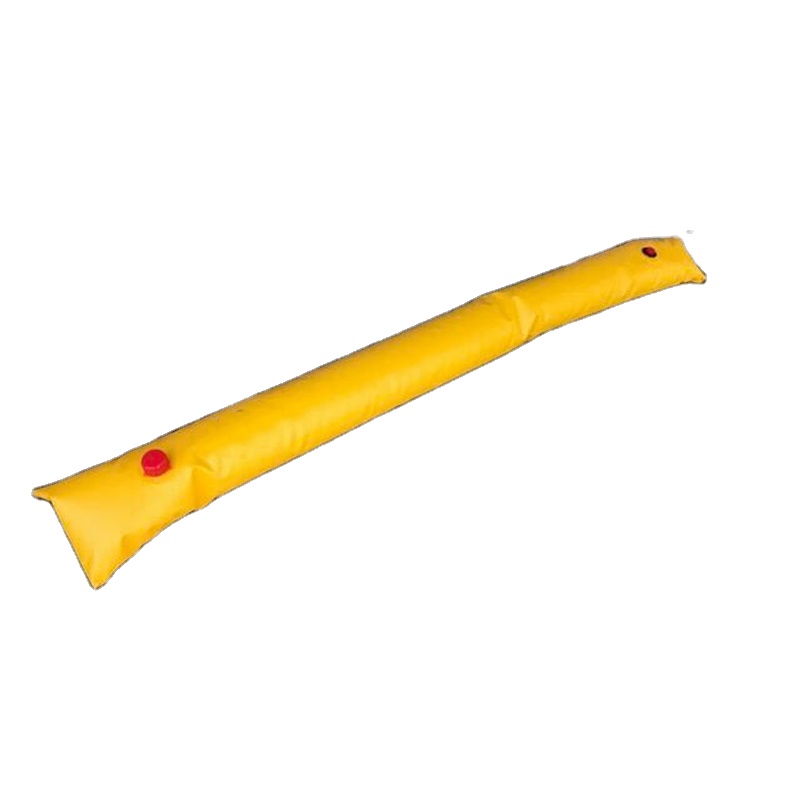

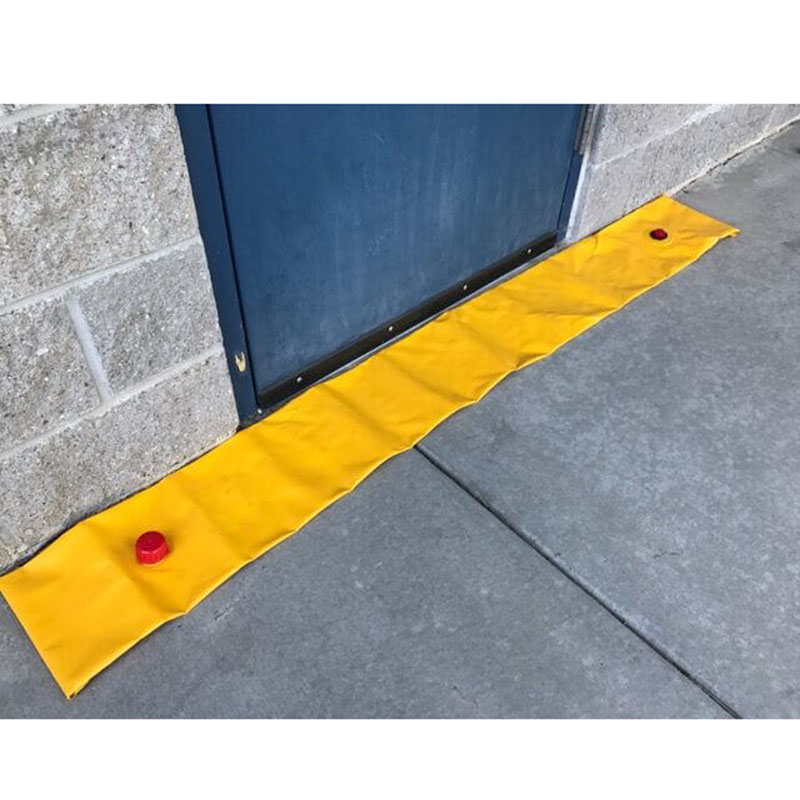

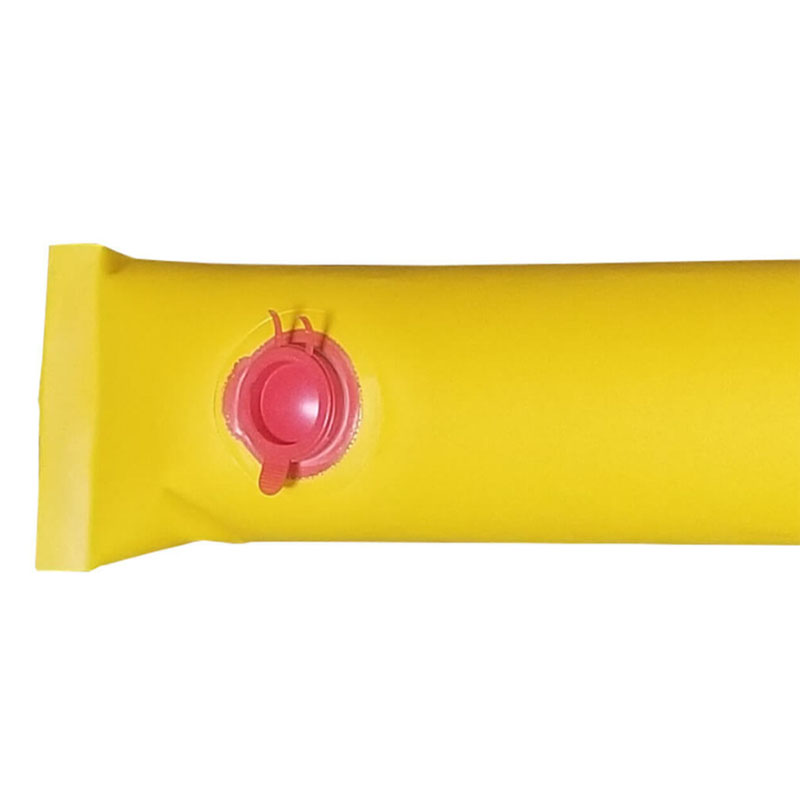

See examples of the tube, filling openings, positioning and rolled storage. Photos are illustrative; caps and details may vary by model. Confirm the configuration supplied with your chosen size.
Swipe or scroll sideways to explore all six photos. Select an image to open it full size.
Where Series Pro Is Best Suited
- Residential doorways and garage entrances
- Shopfronts and roller doors
- Driveways and short accessways
- Small commercial and light-industrial openings
- Areas where a portable system is preferred over permanent posts or channels
Ground & Surface Guidance
Series Pro performs best on firm, relatively level surfaces such as concrete, asphalt, pavers or compacted ground. Sharp objects, loose debris and anything that could puncture the barrier should be removed before deployment.
Deployment Overview
- Assess the flood path. Identify where water is expected to approach and select a barrier length that extends beyond the opening where practical.
- Prepare the surface. Remove sharp objects and debris and check the ground is suitable for the barrier.
- Position the barrier. Lay the empty tube along the required protection line.
- Fill with water. Fill the barrier in accordance with the supplied instructions while checking its position and ground contact.
- Monitor conditions. Flood conditions can change, so the barrier and surrounding area should be monitored where it is safe to do so.
- Drain and store. Once the flood risk has passed, drain, rinse, dry and store the barrier out of direct sunlight ready for future use.
Performance & Limitations
Series Pro is intended for managing shallow surface water and localised runoff where site conditions are suitable. The listed tube heights do not establish a tested protection depth or leakage rate. Ask us to confirm the recommended operating limits for your chosen profile; a 305 mm-high tube must not be assumed to protect against 305 mm of floodwater.
It is not the right system for every flood risk. Deeper water, stronger flow, longer protection runs, steep or highly uneven ground, or larger commercial and infrastructure sites may require a heavier system such as FloodLine XL, a modular barrier or an aluminium flood barrier.
Choosing the Right Size
It is generally preferable to allow enough length for the barrier to extend beyond the vulnerable opening so water is not simply redirected around the ends. Before recommending a Series Pro size, we look at the opening width, expected flood direction, previous flood depth, surface condition and what is located immediately either side of the opening.
Supply & Support in New Zealand
Available throughout New Zealand. We can work through your measurements, photographs and known flood history to help determine whether Series Pro is suitable or whether another flood-protection system would be more appropriate.
Local site assistance is available within the wider Manawatū–Whanganui region, with other locations considered depending on the project.
Talk through your site
Send us your location, opening measurements, photographs and details of any previous flooding. We can discuss whether Series Pro is suitable or whether another flood-protection system may be a better fit.
